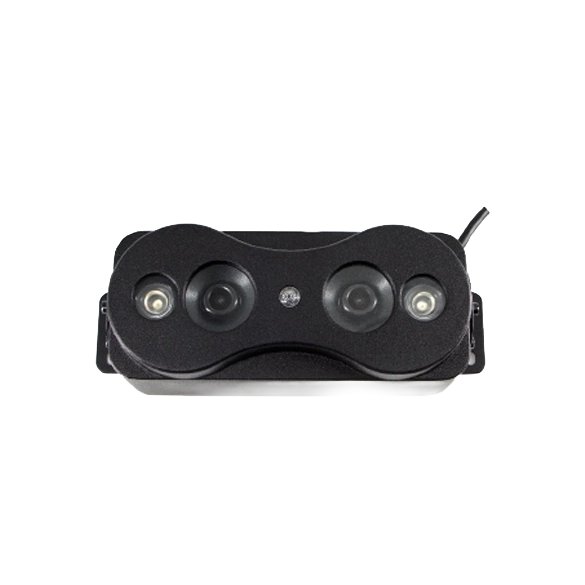

Amber Vision MA17

Features
The Amber Vision MA17 combines high-quality video recording with AI-based features like driver monitoring, ADAS alerts, and real-time event detection. Built for advanced fleet operations, it enhances safety, improves driver behavior, and delivers actionable insights.
700 TV Lines

Electronic Shutter (Auto), White Balance(Auto)

Auto White Balance
Lens 960 x 576 pixels, 2.8mm
12V Power Supply
Spectrum Specifications
The Amber Vision MA17 supports 4G LTE connectivity with GSM fallback, enabling real-time video streaming and data transmission. With strong network compatibility, it ensures seamless communication and continuous monitoring across different environments.
Lens Module
1/3 CCD
Format
PAL
Horizontal Clarity
700 TV Lines
Image Output
Synchronized Sampling Output
GNSS Specifications
The Amber Vision MA17 utilizes GPS, GLONASS, and IRNSS positioning systems to provide accurate location tracking alongside video data. This enables precise trip tracking, route visibility, and improved incident analysis for better fleet monitoring.
Signal-to-noiseratio
5 cm
Lens Parameters
960 x 576 pixels, 2.8mm
Signal-to-noise ratio
> 48 d
White Balance
Auto White Balance
Shutter
1/50-1/80000 (sec.) 1/60-1/80000 (sec.)
Frame rate
25 fps
Video Output Interface
Composite Video Output, Aviation Head Connector
Gain
Automatic gain control
Other Specifications
The Amber Vision MA17 is built for durability and reliable performance, featuring a robust design suitable for continuous vehicle usage. It supports a wide input voltage range and integrates seamlessly with telematics systems for consistent video and tracking performance.
Power supply
≤ 1 W
Dimension
165 x 59.65 x 68mm (L x W x H)
Weight
≤0.6kg
Operating temperature
-20°C to +70°C
Operating Humidity
10%〜90%non-condensing
Heat Dissipation
No active heat dissipation, passive structural heat dissipation
Demo Video
FAQ
The Amber Vision MA17 is a high-accuracy passenger counting camera designed for use in public transport and commercial fleets. It captures reliable ingress/egress data, helping with route planning, service optimization, and revenue verification by providing accurate passenger insights.
The Amber Vision MA17 features a 1/3" CCD sensor with a 700 TV-line resolution. It provides a clear 960x576 pixel image, ensuring accurate passenger counting and monitoring. The lens has a 5 cm spacing and a 2.8mm focal length.
The camera performs effectively with a minimum illumination of 0.1 LUX and even works in complete darkness when the IR light is active. This makes it ideal for consistent performance in various lighting conditions.
Yes, the Amber Vision MA17 includes infrared (IR) night vision, making it suitable for low-light environments. It also supports Digital Wide Dynamic Range (D-WDR) for enhanced image quality during day-to-night switching.
Yes, the camera is built to endure challenging environments, with an IP67 rating for dust and water resistance. It is designed to operate in temperatures ranging from -20°C to +70°C, ensuring durability for both indoor and outdoor applications.
