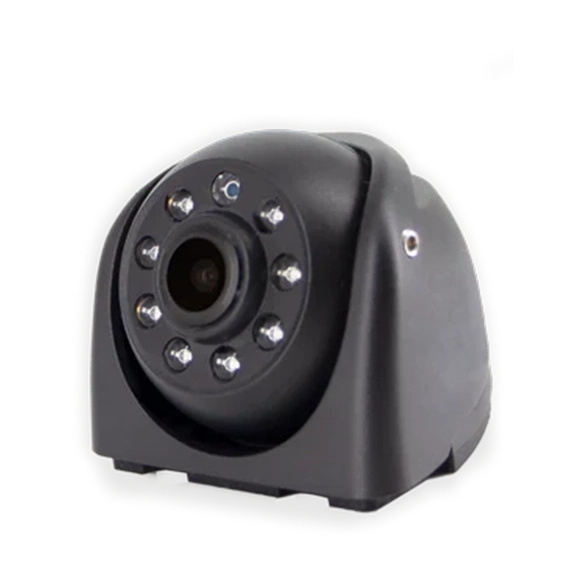

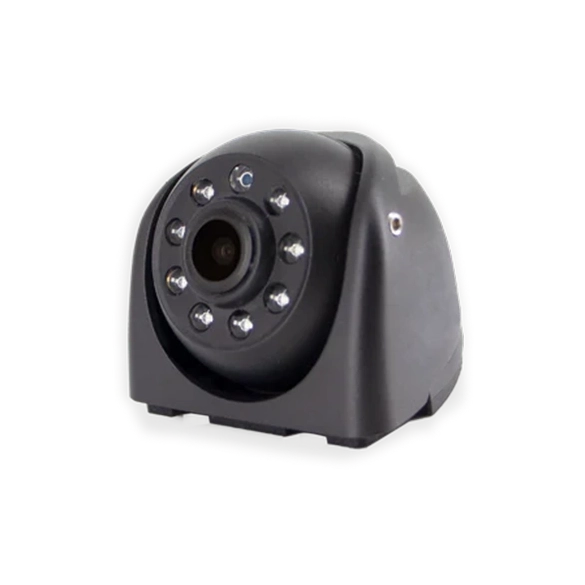

Amber Vision MA09

Features
The Amber Vision MA09 combines high-quality video recording with AI-based features like driver monitoring, ADAS alerts, and real-time event detection. Designed for advanced fleet operations, it enhances safety, improves driver behavior, and delivers actionable video insights.
Resolution: 1080P AHD

Electronic Shutter (Auto), White Balance(Auto)

D-WDR, IR Night Vision
2.8mm (2.8 & 3.6 & 6.0mm optional)
12V Power Supply

Car Side Installation
IP67 Water & Dust Resistance
Spectrum Specifications
The Amber Vision MA09 supports 4G LTE connectivity with GSM fallback, enabling real-time video streaming and data transmission. With strong network compatibility, it ensures seamless communication and continuous monitoring across different environments.
Lens Module
2MP AHD Module FH8536H+GC2053
Resolution
AHD 1080P
Format
PAL
Total Pixels
PAL:1920(H) x 1080(V)
Minimum Illumination
0.1 LUX
Electronic Shutter
PAL: 1/50 〜 1/100,000s AUTO
GNSS Specifications
The Amber Vision MA09 utilizes GPS, GLONASS, and IRNSS positioning systems to provide accurate location tracking alongside video data. This enables precise trip tracking, route visibility, and improved incident analysis for better fleet monitoring.
Signal-to-noiseratio
> 52 dB
White Balance
Auto White Balance
Day/Night Switching
Color Mode
Digital Wide Dynamic
Turn on
Infrared Light
Infrared
Video Output
1.0Vp-p Composite Output, 75Ω
Lens
2.8MM
Viewing Angle
105°
Interface
M12 4-pole aviation connector
Other Specifications
The Amber Vision MA09 is built for durability and reliable performance, featuring a robust design suitable for continuous vehicle usage. It supports a wide input voltage range and integrates seamlessly with telematics systems for consistent video and tracking performance.
Power supply
DC 12V
Operating temperature
-20°C to +70°C
IngressProtection
IP67
Operation Humidity
Relative humidity less than 90%
Demo Video
FAQ
The Amber Vision MA09 is a rugged 1080P AHD camera designed for side vehicle monitoring, making it ideal for enhancing driver awareness and safety by minimizing blind spots. It is equipped with infrared night vision, ensuring reliable performance in low-light conditions.
The Amber Vision MA09 offers a 1080P resolution with a 105° viewing angle, providing clear and detailed footage to help drivers avoid collisions and improve safety.
Yes, the camera includes infrared (IR) night vision capabilities, allowing it to capture clear footage even in low light with a minimum illumination of 0.1 LUX.
The Amber Vision MA09 has an IP67 rating, meaning it is fully protected against dust and can withstand immersion in water, ensuring it performs reliably in harsh outdoor conditions.
Yes, the camera operates in temperatures ranging from -20°C to +70°C and is designed for installation on the sides of vehicles, making it ideal for a variety of fleet applications in different environments.
