The Amber Vision M409 is a state-of-the-art AI dashcam designed for superior fleet management and vehicle safety. With real-time video streaming, advanced driver behavior analysis, and incident detection, it helps fleet managers ensure fleet security and improve operational efficiency.




The Amber Vision M409 combines high-definition video recording with AI-powered features to monitor driver behavior, detect accidents, and improve fleet safety. With real-time video streaming, cloud-based storage, and seamless connectivity, it provides fleet managers with essential tools to optimize fleet performance and reduce risks.
The device can support simultaneous operation of 4 camera channels.
H.265/H.264 encoding and decoding for optimized memory utilization. Compact design with hard disk up to 1TB. Supports 1 x SD card, up to 512GB each.
Supports up to 4 digital inputs, 1 digital output, and 2 x RS232 interfaces. Compatible with external devices such as RFID readers, fuel sensors, and PTZ cameras.
WiFi functionality supports hotspot mode.
The device supports three algorithms: DMS, ADAS, and BSD.
Configured with a graphical menu interface, allowing you to use a mouse or remote control to set parameters.
The Amber Vision M409 supports 4G LTE connectivity for seamless communication and video streaming. Its integrated GPS and broad network compatibility ensure fleet managers have real-time access to vehicle data, improving fleet monitoring and management across various locations.
Equipped with GPS, GLONASS, and IRNSS, the Amber Vision M409 delivers precise vehicle tracking, even in challenging environments. Its fast time-to-first-fix (TTFF) ensures reliable, real-time tracking, making it ideal for fleet management in regions with limited satellite visibility or poor signals.
Linux
ARM Cortex CA9 Dual-Core + NPU@0.7T
1* 1TB SSD (M.2 SATA protocol) + 1*512GB SD card
Yes
H.264/H.265, default H.264 / PAL, NTSC

Options: 1080P/720P/D1 Total 1080P at 60 fps
G.711A
4*digital inputs, 1*digital output, 2*RS232
2*RS232 port or 1*RS485 port and 1*RS232
Other 1-channel voice intercom interface, which can connect the voice handle
The Amber Vision M409 is built for durability with an IP66 rating for dust and water resistance. Operating within a 9-36V DC voltage range, it is compatible with various vehicles. Its robust construction ensures long-term reliability, providing fleet managers with continuous performance in demanding environments.
DC: +9V ~ +36V
-20°C to +70°C
8% to 90%
195 x 183 x 60 mm
450g
CE/CE/CITC/RoHS

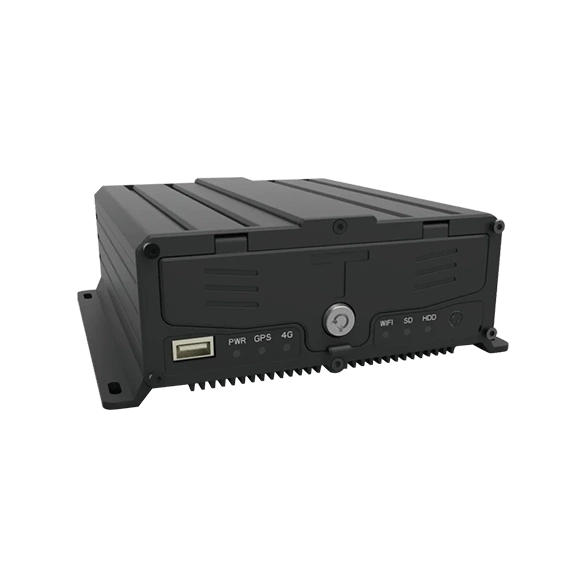

The Amber Vision M409-E is a 4G 4-channel Mobile DVR designed for advanced fleet monitoring. Unlike standard MDVRs, it features built-in AI algorithms (ADAS, DMS, BSD) along with high-capacity SSD storage, enabling smarter and more reliable vehicle surveillance.
