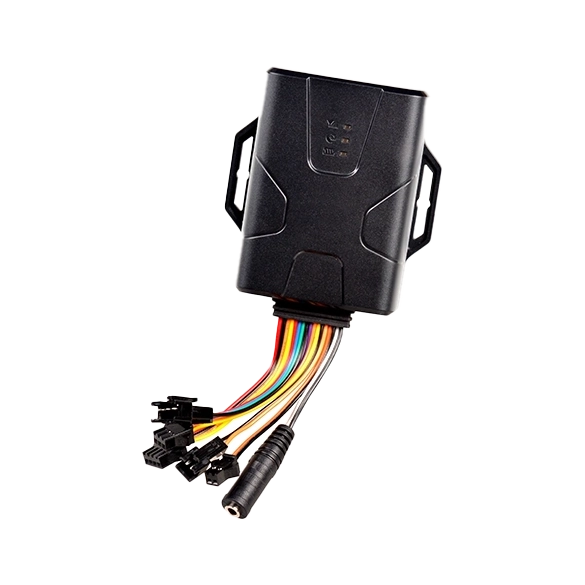

Amber Power C220

The Amber Power C220 is a high-performance GPS vehicle tracker that enables real-time vehicle monitoring, advanced fleet management, and secure vehicle control. It offers seamless connectivity, precise tracking, and robust protection for your fleet.

Amber Power

device name

circle stage

Amber Power thumb 0

Features
Amber Power C220 integrates advanced telematics features like remote vehicle cut-off, two-way communication, and emergency SOS. With GPS and LBS positioning, it provides real-time tracking and detailed vehicle insights, while its IP66 rating ensures reliable operation in any environment.
GPS & LBS Positioning

IP66 Dust & Water Resistance

Remote Cut-Off (Fuel/Power)

Multiple I/Os for Sensors/Peripheral

Two-Way Communication

50,000 Data Storage

RS232 & TTL Serial Port

Emergency SOS Button
Spectrum Specifications
Amber Power C220 supports multiple communication frequencies, including GSM and GPRS, ensuring stable connectivity for reliable vehicle tracking. The device’s advanced network capabilities make it suitable for global use, delivering consistent data transmission.
Technology
GSM/GPS
Communication network
GSM
Frequency
850/900/1800/1900 MHz
GPRS
Class 12, TCP/IP
Max output
GSM850/GSM900: 33±3dBm
GSM1800/GSM1900: 30±3dBm
Max frequency error
±0.lppm
GNSS Specifications
Amber Power C220 features a multi-constellation GNSS receiver, supporting GPS, GLONASS, and IRNSS positioning systems for precise vehicle tracking. It offers a fast time-to-first-fix (TTFF), ensuring real-time location updates with high accuracy, even in challenging conditions.
Positioning system
GPS + IRNSS + GLONASS
Frequency
L 1, 1575.42MHz Cl A code
Positioning accuracy
<2.5m CEP
Tracking sensitivity
-163dBm
Acquisition sensitivity
-148dBm
TTFF (open sky)
Avg. hot start ≤ 2 sec
Avg. cold start ≤32 sec
Other Specifications
Built for durability, Amber Power C220 operates within a wide voltage range (9-36V DC) and boasts an IP66 rating for water and dust resistance. With an industrial-grade battery and a temperature tolerance from -20°C to +70°C, it ensures reliability across diverse environments.
Battery
800mAh/3.7V Li-Polymer battery
Input voltage
9-36VDC/45mA(l 2VDC)
Current
28mA(24VDC)
Operating temperature (without battery)
-20℃ to +70℃
Device Dimension
93.0 x 76.0 x 18.0 mm (L x W x H)
Weight
91.7 g
IP Ratings
IP66
Demo Video
FAQ
What is the Amber Power C220 and how does it work?
The Amber Power C220 is a multifunctional GPS vehicle tracker that uses GPS, IRNSS, and GLONASS positioning along with GSM connectivity to provide real-time vehicle tracking, communication, and monitoring for fleets and individual vehicles.
Does the Amber Power C220 support remote engine cut-off?
How accurate is the GPS tracking in Amber Power C220?
Can Amber Power C220 monitor driver behavior and safety?
Is the Amber Power C220 suitable for harsh environments?
